# Mockups

Build HTML mockups in Nimbalyst using your docs, code, and sessions as context, then hand the same mockups to your agent to implement.

A mockup is a visual design for a screen, stored as a real HTML file (`.mockup.html`) in your project. Because your agent builds mockups with your docs, code, and sessions as context, and the result is plain HTML and CSS, the same file works for designing a feature and for implementing it. No copy/paste between a design tool and your codebase.

See the [mockups feature page](https://nimbalyst.com/features/mockups/) for how mockups feed back into implementation, and [UI mockups](https://nimbalyst.com/use-cases/ui-mockups/) for a full example.

<figure><img src="https://562749618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiVUeHZHlFlZrZt02syRC%2Fuploads%2Fgit-blob-2ca4495fef111b14ae972e1b230a21bc7d3e1ea6%2FCreate%20and%20Edit%20Mockups.gif?alt=media" alt=""><figcaption><p>Creating a mockup from the agent chat with the /mockup command, using the open document as context.</p></figcaption></figure>

### Create a Mockup

1. Select **New > New Mockup**, or type `/mockup` in the chat.
2. In the agent chat, describe the mockup you want created.
3. Reference documents with **@**, and paste images or screenshots into the chat for the agent to work from.

### Edit the Mockup

Click a `.mockup.html` file to open it in the mockup editor.

<figure><img src="https://562749618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiVUeHZHlFlZrZt02syRC%2Fuploads%2FSPJYNzOb4qnYSrEffLzO%2F2.png?alt=media&amp;token=33b72743-0c51-4ea7-bac9-6f6e1545bc3b" alt=""><figcaption><p>The mockup editor showing a sign-up form mockup with a hand-drawn red annotation circling two fields, drawing tools in the toolbar, and the agent chat on the right.</p></figcaption></figure>

Edit it in three ways:

* Directly in the HTML
* By selecting an element and asking the AI to modify it
* By drawing annotations on the mockup and then asking the AI to make the change you marked

### Multi-Screen Flows

Put multiple mockup screens on a [Project Canvas](/visual-editors-powered-by-ai/canvas.md) to design a complete flow: checkout, onboarding, settings, or anything else that spans more than one screen.

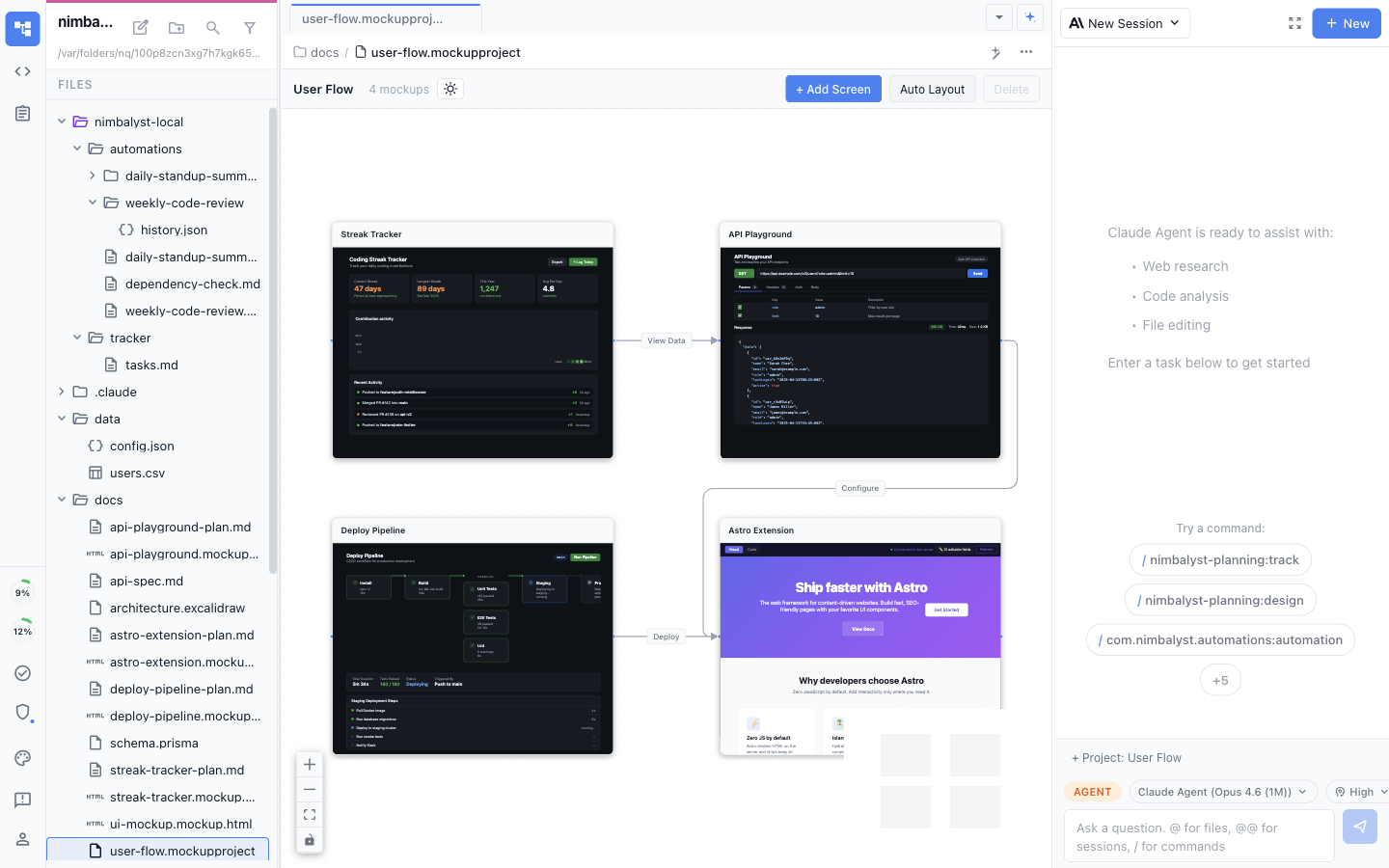

<figure><img src="https://562749618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiVUeHZHlFlZrZt02syRC%2Fuploads%2Fgit-blob-0043861b4b2fd392b0a03d0f76a641ddb670c597%2FMockup%20Projects%20Canvas.png?alt=media" alt=""><figcaption><p>A mockup project canvas holding four screens connected by labelled arrows, with Add Screen and Auto Layout buttons in the toolbar.</p></figcaption></figure>

On the canvas:

* Drag screens around to arrange them spatially
* Draw connections between screens to show navigation flow, and label them (click, hover, navigate)
* Add existing `.mockup.html` files as live file cards
* Ask the agent to create the screens and arrange them for you
* Click into a card to edit the mockup in place

Project boards are stored as `.canvas` files. Older `.mockupproject` files open in a compatibility view that can convert them to the current Canvas format.

### Insert a Mockup into a Markdown Document

<figure><img src="https://562749618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiVUeHZHlFlZrZt02syRC%2Fuploads%2F3UWY1k5rh9Vo7t3k9XgN%2FInsert%20mockup%20into%20a%20document%20(1).gif?alt=media&amp;token=401af74d-34c8-433a-ac60-6d56fa65645e" alt=""><figcaption><p>A markdown document with a mockup embedded inline, edited alongside the agent chat.</p></figcaption></figure>

Type **/** in a document and insert a mockup. Click the embedded mockup to edit it in place.

### File Type and Storage

Mockups are `.mockup.html` files. By default new mockups are saved under `nimbalyst-local/mockups/` in your project, but you can keep them anywhere.

## Working with the AI

### Tips for Better Results

* **Be specific about layout**: "Two-column layout with 30% sidebar" beats "add a sidebar"
* **Reference known products**: "Style it like the Stripe dashboard" gives the AI a clear design reference
* **Describe interactions**: "When hovering over a row, show a blue highlight and a delete icon on the right"
* **Iterate in small steps**: make one change at a time so you can evaluate each iteration

### What the AI Sees

When you ask the AI to edit a mockup, it:

1. Captures a screenshot of the current rendered mockup
2. Reads the HTML source code
3. Sees any annotations you've drawn
4. Understands which element you've selected (if any)

This multi-modal context means you can say "make the thing I circled bigger" and the AI knows what you mean.

### Design-to-Code Workflow

Mockups are real HTML and CSS, which makes them a useful bridge between design and implementation:

1. **Design in mockups**: iterate on the visual design with AI assistance
2. **Review with stakeholders**: share the rendered mockup for feedback
3. **Extract patterns**: use the mockup's HTML/CSS as a reference when implementing the production UI
4. **Maintain alongside code**: keep mockups updated as the product evolves

## File Format

Mockups use standard HTML with inline CSS. No build tools or frameworks required.

```html
<div style="font-family: system-ui, sans-serif; max-width: 800px; margin: 0 auto;">
  <header style="padding: 16px; border-bottom: 1px solid var(--nim-border);">
    <h1 style="color: var(--nim-text);">Settings</h1>
  </header>
  <main style="display: flex; gap: 24px; padding: 24px;">
    <nav style="width: 200px;">
      <!-- Sidebar content -->
    </nav>
    <section style="flex: 1;">
      <!-- Main content -->
    </section>
  </main>
</div>
```

Using `var(--nim-*)` CSS variables ensures your mockup adapts to light and dark themes automatically.


---
